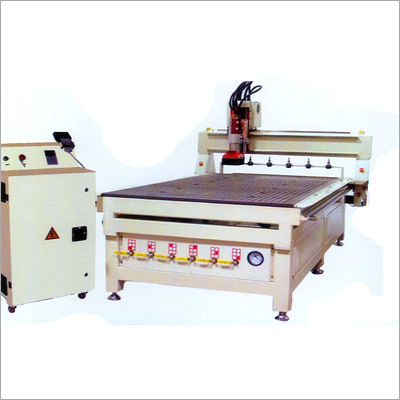

Cnc Engraving Machines

Backed with the work of our team of engineers & professionals, we have been counted amongst the leading manufacturers and suppliers of CNC Engraving Machines. All these engraving machines are immensely supplied to industries for engraving different materials such as aluminum, steel, copper, brass, graphite and plastic. All these CNC machines are highly recommended in the market for their rigid construction, high speed and low consumption of power. Available in different specifications, all these CNC Engraving Machines are available for our clients at market leading prices.
MIT 1325ATC Features
- Affordable Auto Tools Changers
- 3.8 KW HSD Air Cooled ATC Spindle
- 6 Tool Changer ATC with Vaccum bed
- Yasakawa Servo Motors and Drives
- Optional Angle Heads and Circular Saw Attachment
- Suitable for complete Wood Working Industry
- Pneumatic Rods Fast Work Pc Setup
- Custom Build Software Prog for Kitchen and Furniture Industry
Description | MIT 1325 ATC |
X, Y, Z working Area | 1300x2500x200mm |
X, Y, Z Traveling Accy. | +0.05/300mm |
X, Y Structure & Z Structure | Rack and Pinion Drive & Z Ball Screw |
Max. Rapid Travel | 40000mm/min |
Max. Working Speed | 20000mm/min |
Spindle Power Motor | 3.8Kw HSD Spindle |
Spindle Speed | 0-18000 RPM |
Drive Motors | Yaskawa Servo |
Working Voltage | AC380/3 Phase |
Collet | BT 30 |
Optional | 8Kw HSD Spindle |
