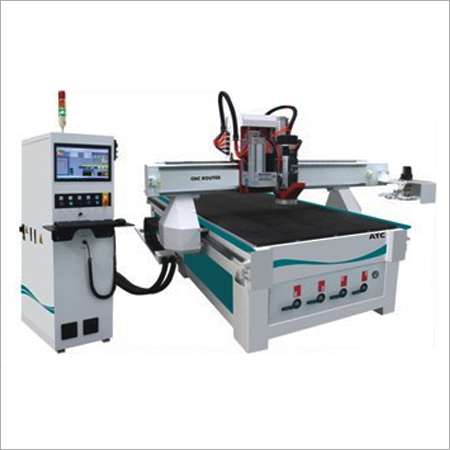

CNC Router ATC
Product Code : 16
Brand Name : 3D MACINFOTECH PVT. LTD
Product Description
Technical Specifications :
| Description | MIT-1325ATC | Features |
| X,Y,Z Working area | 1300x2500x200mm | Affordable Auto Tool changer |
| X,Y,Z Traveling Accy. | +0.05/300mm | 9 KW HSD Air cooled ATC Spindle |
| X,Y Structure and Z structure | Rack and pinion drive and Z ball screw | 6 Tool changer ATC with vaccum bed |
| Max. Rapid travel | 32000 mm/min | Delta servo motors and drives with Taiwan Syntec Controller |
| Max. Working speed | 20000 mm/min | Optional angle heads and circular attachment |
| Spindle power motor | 9 KW (Air cooled) | Suitable for complete wood working industry and panel processing |
| Drive Motor | Servo system |
|
